Mercedes Sprinter is one of the favorite models for transporting small loads. This is a reliable machine, produced since 1995. During this time, it has gone through several incarnations, with which the self-diagnosis has also changed. As a result, Mercedes Sprinter 313 error codes may differ from version 515. The general principles are preserved. First of all, the number of characters has changed. If before there were four of them, today there can be up to seven, as for example in the fault 2359 002.

Content



1 Decoding of error codes Mercedes Sprinter

1.1 P2BAC - Sprinter Error

1.2 EDC - Sprinter malfunction

1.3 Sprinter Classic: SRS error

1.4 EBV - Sprinter malfunction

1.5 Sprinter: P062C breakdown

1.6 43C0 - code

1.7 P0087 code

1.8 P0088 - Sprinter error

1.9 Sprinter 906 Fault P008891

1.10 Fault P0101

1.11 P012C - code

1.12 Code 0105

1.13 P0652 - code

1.14 Code P1188

1.15 P1470 - Sprinter Code

1.16 P1955 - malfunction

1.17 Error 2020

1.18 Code 2025

1.19 R2263 - code

1.20 Code 2306

1.21 2623 - Sprinter code

1.22 Code 2624

1.23 2633 - Sprinter code

1.24 Fault 5731

1.25 9000 - breakdown

2 Sprinter: how to reset errors

DECODING ERROR CODES MERCEDES SPRINTER

Depending on the modification, the codes can be displayed on the dashboard or read by a diagnostic scanner. In older generations, for example, 411, as well as Sprinter 909, errors are displayed using a blink code transmitted by the flashing of the Check light on the tidy.

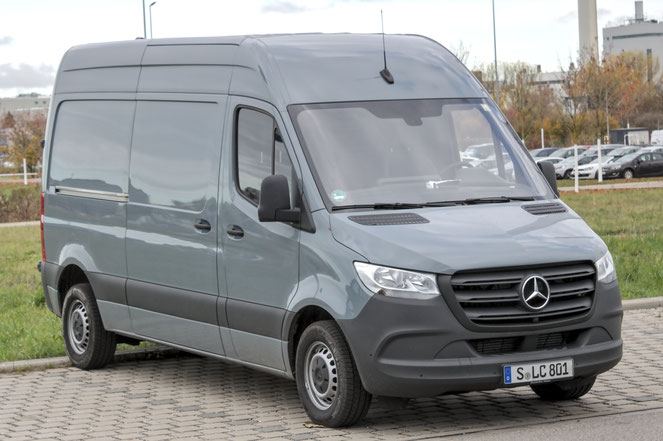

Mercedes

The modern five-digit code consists of an initial letter and four numbers. Symbols indicate breakdowns in:

motor or transmission system - P;

the body element system - B;

suspension - C;

electronics - U.



In the digital part, the first two characters indicate the manufacturer, and the third indicates a malfunction:



1 - fuel system;

2 - ignition;

3 - auxiliary control;

4 - idle;

5 - power unit control systems;

6 - checkpoint.

The last digits indicate the type of breakdown.



P2BAC - SPRINTER ERROR

Appears in the modification of the van of the Classic 311 CDI version. Indicates that exhaust gas recirculation is deactivated. There are several ways to cure a car. The first is to check the adblue level, if provided on the Sprinter. The second solution is to replace the wiring. The third way is to fix the recirculation valve.

EDC - MALFUNCTION SPRINTER

This light is on - evidence of problems with the electronic fuel injection control system. To eliminate it, you will need to clean the fuel filters.



SPRINTER CLASSIC: SRS ERROR

Lights up when, before starting repair or diagnostic work, the system is not de-energized by removing the negative terminal of the battery.



EBV - SPRINTER MALFUNCTION

Illuminated and non-extinguishing icon - evidence of a short circuit in the electronic brake distribution system. The problem may lie in generator glitches.



SPRINTER: BROKEN P062C

For a diesel engine, it indicates an internal malfunction of the control module. Occurs when the fuel injector is shorted to ground.



43C0 - CODE

Appears when erasing brushes in the ABS unit.

Malfunction



CODE P0087

Fuel pressure too low. Appears when the pump is faulty or the fuel supply system is clogged.



P0088 - ERROR SPRINTER

Indicates an excessively high pressure in the fuel system. Occurs when the fuel sensor breaks down.



SPRINTER 906: MALFUNCTION P008891

Indicates an excessively high fuel pressure due to a broken regulator.



FAULT P0101

Occurs when the mass air flow sensor breaks down. The reason should be sought in wiring problems or damaged vacuum hoses.



P012C - CODE

Indicates a low signal from the turbocharger pressure sensor. In addition to blocking the air filter, damage to the wiring or insulation, corrosion, often leads to a problem.



CODE 0105

A breakdown has occurred in the MAP sensor circuit. Pay particular attention to the wiring.

P0652 - CODE

The voltage in the "B" circuit of the sensors has dropped too much. It appears due to a short circuit, sometimes in damage to the wiring.



CODE P1188

Appears when the high pressure pump valve is faulty. The reason lies in the damage to the electrical circuit and pump breakdowns.



P1470 - CODE SPRINTER

The turbine control valve is not working correctly. It appears due to failures in the auto circuit.



P1955 - MALFUNCTION

Problems arose in the glow plug module. The glitch lies in the contamination of the particulate filters.



ERROR 2020

Talking about problems with the intake manifold actuator position sensor. Check wiring and sensor.



CODE 2025

The malfunction is associated with the fuel vapor temperature sensor or the steam trap itself. The reason must be sought in the breakdown of the controller.

Panel



R2263 - CODE

On a Sprinter with an OM 651 engine, error 2263 indicates excessive pressure in the turbocharging system. The problem lies not in the cochlea, but in the boost sensor.



CODE 2306

Appears at a low signal from the ignition coil "C". The main reason is a short circuit.



2623 - CODE SPRINTER

The MAF sensor is biased at idle. Check for broken or damaged wiring.



CODE 2624

Appears when the signal from the injector control pressure regulator is too low. The reason lies in the short circuit.



2633 - CODE SPRINTER

Indicates too low a signal from the fuel pump relay "B". The problem happens due to a short circuit.



FAULT 5731

This software error occurs even on a perfectly serviceable car. You just need to erase it.

Error variant



9000 - BREAKAGE

Appears in case of problems in the operation of the steering position sensor. It will need to be replaced.



SPRINTER: HOW TO CLEAR ERRORS

Removal of faults is carried out using a diagnostic scanner or manually. Everything happens automatically after selecting the appropriate menu item. Manual erasing occurs according to the following procedure:

  • start the car engine;
  • close the first and sixth contacts of the diagnostic connector for no less than 3 and no more than 4 seconds;
  • open contacts and wait 3 seconds;
  • close again for 6 seconds.

The error is then cleared from the machine's memory. A simple reset of the negative terminal for at least 5 minutes is also suitable.
