Detroit Diesel Error Codes List. DTC

Detroit Diesel is one of the premier manufacturers of medium and high power engines. The company offers a complete line of commercial vehicle engines ranging from 190 to 560 horsepower. The headquarters is located in Detroit, Michigan (USA), through which all business processes are monitored and managed. The dealer network covers over 60 countries of the world located in Africa, North and South America, the Pacific region, Asia, Europe and the Middle East. The organization currently employs 2,600 people working on new technologies, business methods, services and its development in general.

The entire range of products manufactured by the Detroit Diesel Corporation is divided into 3 broad categories. The first includes motors: R 1512 (three-cylinder, volume 1.50 liters), R 2016 (four-cylinder, volume 2 liters) and R 2516 (five-cylinder, volume 2.5 liters), with a capacity of 70, 111 and 140 hp. respectively. The first 2 are equipped with one overhead camshaft, the third with two located in the head. Despite their low weight (115-171 kg) and high speed, the engines have a fairly good thrust.

The second category of engines (R 425, R 531 and D 642) are in-line, 4-, 5- and 6-cylinder diesel engines with a working volume of 2.50; 3.10; 4.20 liters, with a capacity of 120-160 hp, at a speed of 4000 to 3000 min-1, respectively. There are 2 valves per cylinder, as well as a turbocharger with an intercooler, common rail injection system installed in the first two models. The mass of the engines of this series is 230, 250, 310 kg.

The third category belongs to the category of V-shaped engines - VR 3024 and VR 4024. These are 6-cylinder 24-valve diesel engines with an angle between the cylinders - 600º. Vibration reduction is achieved by balancing rollers. The VR 3024 model is equipped with 2-shaft heads, its power is 210 HP, at 4500 min-1, the working volume is 3.0 liters. The second type of engine develops a power of about 235 hp at a speed of 4000 rpm, a working volume of 4.03 liters. Both engines are equipped with a common rail direct injection system, the total weight of the assembly is 210 and 290 kg, respectively.

Code / Error description

13 The coolant level sensor is defective. Wires or connectors.

14 The coolant level sensor is defective. Wires or connectors.

14 Defective oil temperature sensor, wires or connectors.

15 Defective o / w temperature sensor or oil temperature sensor, wires or connectors

16 Defective coolant level sensor, wires or connectors

21 Faulty throttle position sensor, wires or connectors

22 Faulty throttle position sensor, wires or connectors

23 Defective fuel temperature sensor, wires or connectors

24 Defective fuel temperature sensor, wires or connectors

25 No active codes

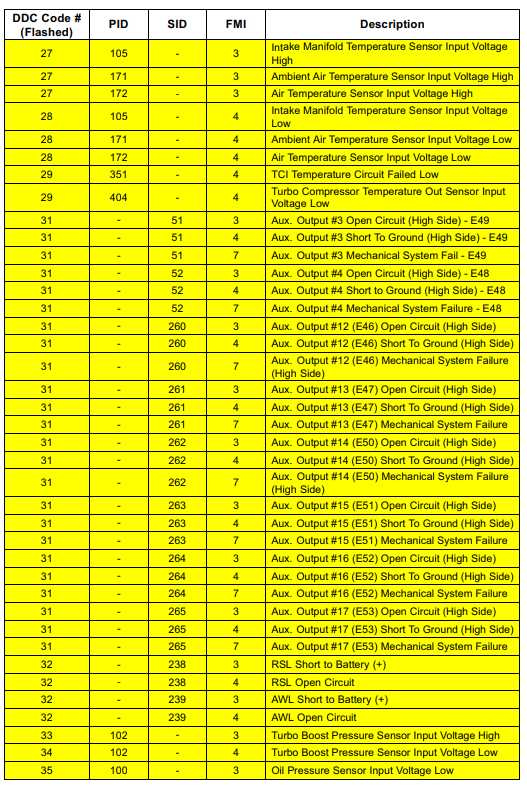

27 Faulty intake manifold air temperature sensor, wires or connectors

27 Defective ambient temperature sensor, wires or connectors

28 Faulty intake manifold air temperature sensor, wires or connectors

31 Faulty engine brake, wires or connectors

32 Malfunction of control lamps STOP ENGINE / CHECK ENGINE, wires or connectors

33 Faulty turbocharging pressure sensor, wires or connectors

34 Faulty turbocharging pressure sensor, wires or connectors

35 Faulty oil pressure sensor, wires or connectors

36 Faulty oil pressure sensor, wires or connectors

39 EGR system malfunction

41 Defective crankshaft position sensor lower, wires or connectors

42 Defective crankshaft position sensor lower, wires or connectors

43 Low coolant level

44 High temperature of oil, coolant or air in the intake manifold

45 Low oil pressure

46 Low voltage supplied to power the ECM motor

47 High pressure in the intake manifold

48 Low pressure in the intake manifold

52 Engine ECM malfunction

53 Engine ECM malfunction

54 Defective vehicle speed sensor, wires or connectors

55 Faulty line J1939 data channel, wires or connectors

56 Faulty line J1587 data channel, wires or connectors

57 Faulty line J1922 data channel, wires or connectors

61 Faulty unit injector, wires or connectors

62 Open or short circuit in the wires of the auxiliary outputs from the ECM of the engine

63 Open or short circuit in the wires of the auxiliary inputs in the ECM of the engine

67 Faulty intake manifold air pressure sensor, wires or connectors

68 Defective idle switch (gas pedal), wire connectors

71 Faulty unit injector, wires or connectors

72 Exceeding the maximum permissible engine speed

73 Malfunction of the vehicle transmission associated with the engine ECM

75 The voltage in the car's electrical network is higher than the permissible

76 Exceeding the maximum permissible engine speed when the engine brake is on

77 High fuel temperature

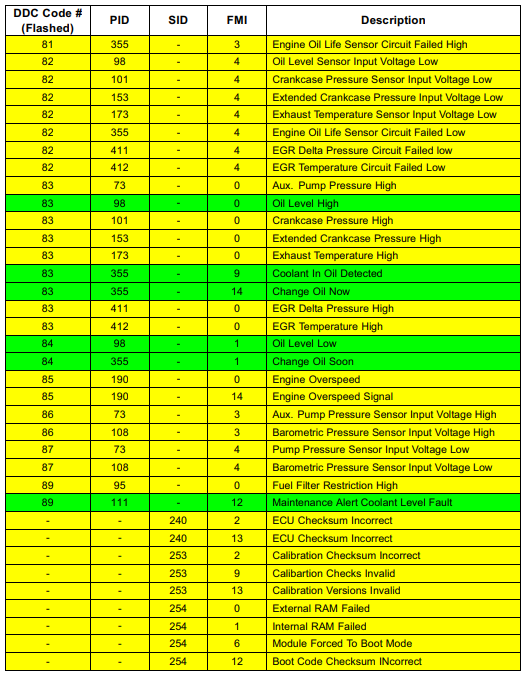

81 Defective pressure or temperature sensor in the exhaust gas recirculation circuit

82 Defective pressure or temperature sensor in the exhaust gas recirculation circuit

83 High pressure drop or high EGR temperature

85 Exceeding the maximum permissible engine speed

86 Defective barometric pressure sensor

87 Defective barometric pressure sensor
